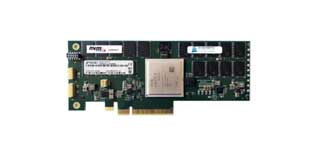

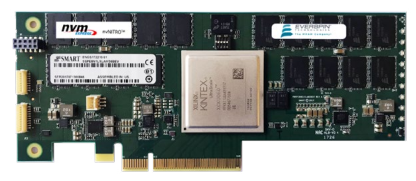

Everspin MRAM是一種具有革命性的存儲器，其原理是利用電子自旋的磁性結構，來提供不會產生損耗的非揮發特性。Everspin MRAM可在集成了硅電路的磁性材料中存儲信息，以在單一、可無限使用的組件中提供SRAM的速度以及閃存的非揮發特性。Everspin是從飛思卡爾半導體公司分離出來的一家獨立公司。2006年，Everspin推出業界第一款商業化MRAM產品。今日，Everspin MRAM已廣泛用在數據存儲、工業自動化、游戲、能源管理、通訊、運輸、和航空電子領域。ES1GB-N03 nvNITRO™ PCIe HHHL Accelerator Card
The ES1GB-N03 nvNITRO™ Accelerator Card is a PCIe HHHL card based on Everspin’s STT-MRAM products and an NVMe protocol that delivers greater than 1.5 Million random write, write/read or read IOPS with 6μs latency. It supports full data integrity on a power failure and virtually unlimited endurance using Everspin nvNITRO™ Accelerators.
| Highlights | Applications |  |
| • 1GB storage capacity | • Power Fail Safe Data & Metadata Cache/Buffer | |
| • PCIe Gen3 x8, half-height, low profile card | • Burst Data Deserializer | |
| • NVMe 1.2.1 in block mode | • Database and Application Accelerators | |
| • Memory mapped IO (MMIO) in byte mode | • Storage Accelerator For All Flash Storage | |
| • Ultra-low access latency (as low as 2μS) | Array (FSA) | |
| • Consistent latency (short tail) | • File System Accelerator (Parallel & Serial) | |
| • Customer-defined features using own RTL | • Power Fail Safe Software Defined Storage | |
| with programmable FPGA | • Power Fail Safe Software and NVMe RAID | |
| • General purpose accelerator development | • OLTP Log Cache Acceleration | |
| platform with programmable onboard FPGA, | • Storage Fabric (Network) Accelerators | |
| Network SERDES, SATA, SODIMM etc. | • Shared Remote Persistent Memory | |
| • Development license for NVMe core IP |
